Deep Processing Wire Mesh Screen Stainless Steel Gas Liquid Filter Grade 316 304 316L 304L

  • Deep Processing Wire Mesh Screen Stainless Steel Gas Liquid Filter Grade 316 304 316L 304L
  • Deep Processing Wire Mesh Screen Stainless Steel Gas Liquid Filter Grade 316 304 316L 304L
Lugar de origem Hengshui, China
Quantidade de ordem mínima 1 peça
Preço 600-1000 us dollar per ton
Tempo de entrega Para a malha que temos em estoque, 5 dias úteis, feitos sob medida dependentes da quantidade
Habilidade da fonte 500 rolos por semana

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Material Fio de aço inoxidável Tipo Malha de arame de malha
Forma de esperança irregular Estilo de tecelagem Tecelagem de crochê
Largura 50 cm Embalagem Papel impermeável, saco de tecido, filme de plástico fora
Destacar

stainless steel wire mesh filter

,

316L stainless steel wire screen

,

gas liquid filtration wire mesh
Deixe um recado
Descrição de produto
Deep Processing Wire Mesh Screen Stainless Steel Gas Liquid Filter Grade 316 304 316L 304L
Product Specifications
Attribute Value
Material Stainless Steel Wire
Type Knitted Wire Mesh
Hope shape Irregular
Weave Style Crochet Weaving
Width 50 Cm
Packing Waterproof Paper, Woven Bag, Plastic Film Outside
Product Description

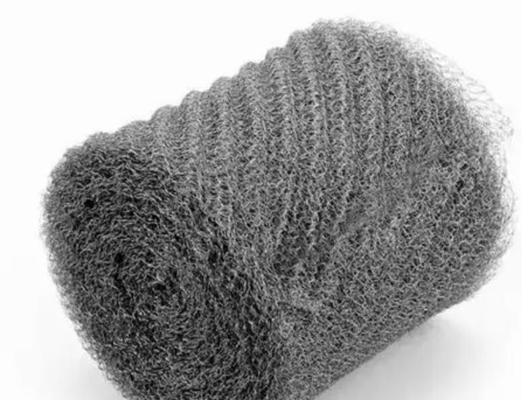

Gas Liquid Filter Mesh (grade 316, 304, 316L, 304L), Deep Processing Knitted Filter Wire Mesh

  • Wire diameter range: 0.10mm-0.55mm (common wire through is: 0.20mm - 0.25mm)
  • Hole size: (2x3mm) to (4x5mm) to the (12x6mm) also according to customer requirements on the hole size fine-tuning. The cutout form of the large hole and the orifice cross-arranged (the size of the holes in the longitudinal direction is the same, width is different)
  • The surface condition of the Knitted Wire Mesh: The flat-type mesh surface and pressed into a corrugated bellows-type network surface (the width of the corrugations and the depth of the different specifications)
  • The common width of Knitted Wire Mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500 mm, 600mm, 760mm, 1200mm etc.
  • The main material of Knitted Wire Mesh: Aluminum wire, stainless steel wire, galvanized wire, fibre wire, plastic wire, PP, PC, PE, PVC, etc.
  • Main purposes: Mainly used for processing demister for separation of the gas inside the droplets. Can also be extrusion molding, for manufacturing a filtration device.
Specification List of Knitted Wire Mesh
Model Specification Wire Diameter mm Materials Area/Weight m²/kg Technical Notes
Standard 40-100 Model
60-150 Model
140-40 Model
40-100 Model
40-100 Model
40-100 Model
40-100 Model		 0.1x0.4
0.1x0.4
0.1x0.4
0.27
0.1x0.4
0.25
0.2		 stainless steel wire
stainless steel wire
stainless steel wire
gal. iron wire
copper wire
polyamide fiber
PVC fiber		 1/0.5
"
"
1/0.7		 1. For 40-100 model: 40 holes in 100% width
2. Metal filter mesh can be processed into weaves type
High Efficiency 90-100 Model
80-100 Model
90-150 Model
200-400
60-100 Model
80-100 Model
0.1x0.3
0.1x0.3
0.1x0.3
0.1x0.3
0.1-0.15
0.1-0.15		 stainless steel wire
stainless steel wire
stainless steel wire
stainless steel wire
polyamide fiber
polyamide fiber		 1/0.6
1/0.6
1/0.6
1/0.6
Great penetration 20-160 Model
30-150 Model
70-400 Model		 0.1x0.4
0.1x0.4
0.1x0.4		 stainless steel wire
stainless steel wire
stainless steel wire
stainless steel wire		 1/0.4
1/0.4
1/0.4
Our Advantages
  • OEM products is welcomed
  • We are direct factory, so any quantity is acceptable
  • We have ISO9001 Certificate
  • Samples are available if needed
  • Supply Mill Test Certificate with the products
  • Our professional technicians could supply you suitable solutions
Product Features
  • High collection efficiency of up to 99% of fluid at velocity of 1 to 8m/sec
  • Provides free area of up to 98% for operation and low pressure drop (0.1" ~ 1.0" W/G)
  • A variety of materials in accordance with temperature and corrosion resistance
  • Easy to install by using manhole. Usable without any restriction and replaceable with existing facilities
  • Designed for self-cleaning (semi-permanent and economical)
Deep Processing Wire Mesh Screen Stainless Steel Gas Liquid Filter Grade 316 304 316L 304L 0
Advantages of Stainless Steel Knitted Mesh
  • Corrosion resistance
  • Alkali and acid resistance
  • Rust resistance
  • High temperature resistance
  • Excellent shielding performance
  • Outstanding filtering efficiency
  • Durable and long service life

Anping Qianpu Wire Mesh Products Co., Ltd. is a manufacture and exporter of stainless steel wire mesh product. We are located in wire mesh industrial base Anping city, Hebei province in China.

Our product range is as below:

  • Stainless steel woven wire mesh
  • Welded wire mesh
  • Crimped wire mesh
  • Hexagonal wire mesh
  • Knitted wire mesh
  • Wire mesh filter
  • Window screen

It have been 15 years that we manufacture and export wire mesh product, our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry. We welcome your enquiry.

Deep Processing Wire Mesh Screen Stainless Steel Gas Liquid Filter Grade 316 304 316L 304L 1
For Quotation Request

In order to make an offer, please provide us below wire mesh specification information:

  • Material
  • Wire diameter
  • Mesh size
  • Wire mesh length
  • Wire mesh width
  • If it is possible, please also provide us weight per roll that you required
